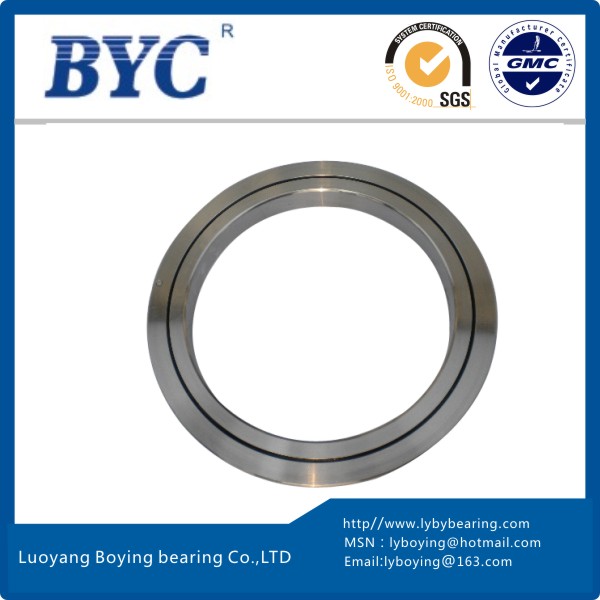

CRBH6013 AUUT1 (dxDxB:60x90x13mm) Crossed Roller Bearings\|Robotic Bearings\|BYC
A . Crossed Roller Bearings Parameters
Brand-	BYC
Model number-	CRBH6013 AUUT1
Inner ring(mm)-	60
Outer ring(mm)-	90
Width(mm)-	13
Weight(Kg)-	0.33
Materials-	GCR15/GCR15SiMn
Precision-	P5/P4/P2
Lubrication-	Grease lubrication
Rotating part-	Inner ring/Outer ring
Load direction-	Multi-load
Structure-	Integrated Inner/Outer Ring

B . CRBH6013 Crossed Roller Bearings Specification Sheet

Model Number	Main dimensions						Mounting dimensions		Basic load rating (radial)		weight
	Inner ring d (mm)	Outer ring D(mm)	Roller pitch circle dp(mm)	Width B(mm)	Greasing hole φ	Chamfer r(min)	ds	Dh	C kN	C0 kN	Kg
CRBH6013	60	90	74	13	0.6	0.6	66	84	18.8	24.3	0.33

C . CRBH type Crossed Roller Bearings Details
Product Features	BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
Series Introduction	CRBH standard type is with an integrated Inner/Outer Ring structure;can be used for both inner-ring rotation and outer-ring rotation.
Series Model No.	CRBH5013A,CRBH6013A,CRBH7013A,CRBH8016A,CRBH9016A,CRBH10020A,CRBH11020A,CRBH12025A,CRBH13025A,CRBH14025A,CRBH15025A,CRBH20025A,CRBH25025A
Applications	Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc

D . Installation for Cross roller Bearings
Installation for Cross roller Bearings-Click Here
